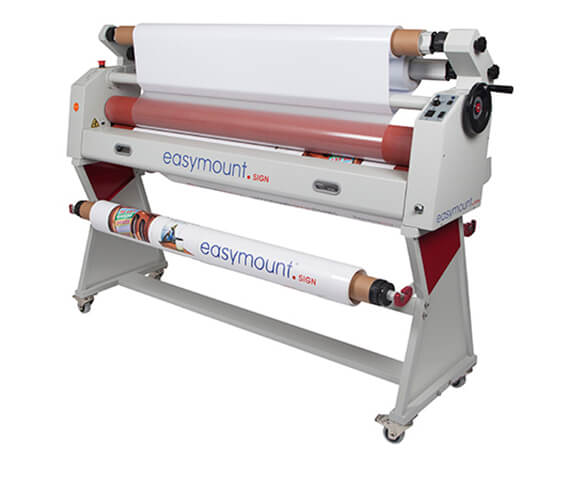

Easymount Sign 1600 Hot

Easymount Sign Single Hot is designed to perform and built to last.

This Easymount® Sign laminator is designed to perform and built to last, with its solid heavy duty construction.
An easy-to-use laminating system with self gripping mandrels and a flip down feed tray.

The Easymount® Sign includes an integral media take-up unit, making the system ideal for single banners or reel to reel laminating up to 50m / 164 feet.



Play Product Video

Category: Tag:

Description

Key Features
• Up to 5m/16ft a minute
• 25mm / 1″ mounting thickness
• Variable speed control
• Integral media take-up unit
• Self gripping mandrels
• Magic eye safety feature
• Heated roller
• Single lift mechanism
• Heavy duty construction
• Release liner take-up
• Large rollers
• Handy reverse mechanism
• Foot pedal

Great for use in
• Sign makers
• Print finishers

Ideal when laminating
• Single banners
• Reel to reel laminates
• Posters, graphics and signs
• Mounting prints to boards
• Pop-up displays
• Applying vinyls, tapes and adhesive films
• Outdoor signage

Additional information

Specifications

Laminating Speed (m/min / feet/min)
5 / 16
Max. Width (mm / inches)
1620 / 64
Mounting Thickness (mm / inches)
25 / 1
Roller Diameter (mm /inches)
130 / 5
Warm-up Time (mins)
–
Hot Roller Heater System
–
Laminating Temperature Range (°C/°F)
0-45 / 32-113
Control Panel
LED
Pressure Adjustment
Manual
Film Core (mm / inches)
77 / 3
Power Supply AC (v, 50Hz)
220/240
Power Supply AC (v, 60Hz)
110
Power Supply Required (Amps)
–
Power Consumption (W)
1200
Overall Dimensions – Width (mm / inches)
2046 / 81
Overall Dimensions – Depth x Height (mm / inches)
550 x 1365 / 22×54
Gross Machine Weight (Kg / lbs)
156 / 344
