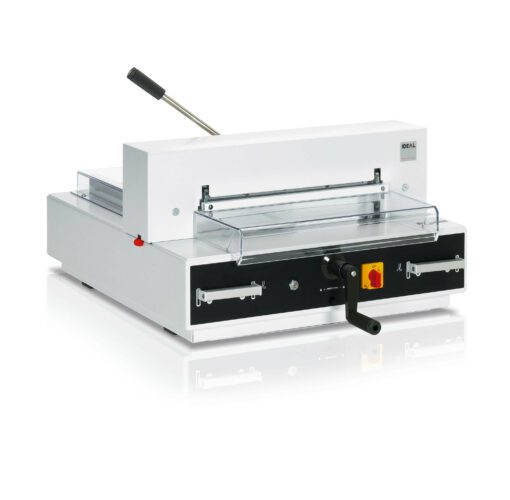

Ideal 4315

Convenient, electric guillotine with manual clamp, 430 mm cutting length and 435 mm table depth (for formats up to A3)

Technical Data
Cutting length 430 mm
Cutting height 40 mm
Narrow cut 35 mm
Table depth 435 mm

Category:

Product Description

Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt control (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers; cutting stick can be turned or replaced easily from the outside of the machine. Electro-mechanical blade drive. Cuts up to 500 sheets of paper (70 g/m2 ) or bound brochures up to 40 mm.

Blade made of German high quality steel. Solid steel blade carrier. Adjustable blade guides made of hardened steel. Patented fast flick action clamp. Precision side lay. Spindle guided backgauge with hand crank. Digital measurement readout for backgauge positioning (cm or inches). Optical cutting line with bright and durable LEDs. Solid all-metal construction.

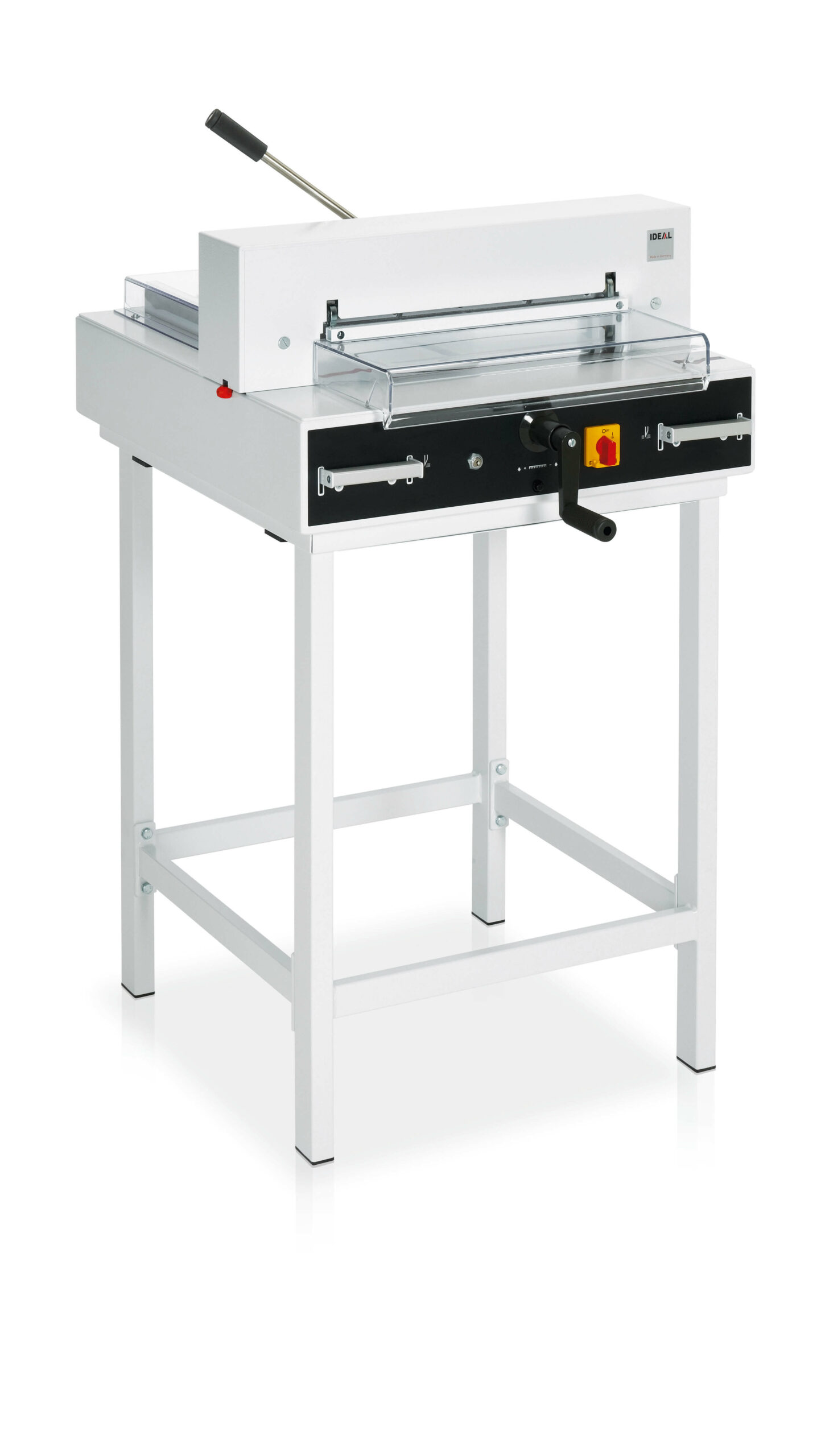

Designed as table top machine, a stand or a cabinet with storage shelf are available as an option. Power supply: 230 V / 50 Hz / 1~ (other voltages available), Motor performance (input capacity): 0.45 kW, Dimensions (H x W x D): 360/10551 /10802 x 640 x 880 mm, Weight: 81/911 /1132 kg (1 with stand, 2 with cabinet), Colour: pearl grey.

Additional Information

Features

• Digital display for accurate positioning of cutting line
• Optical cutting line from LED lamps
• Fast action flick position clamp
• 40mm cutting depth
• Maximum 430mm cutting length, 35mm minimum
• Easy change cutting stick
• Option of stand or cabinet

Typical Uses

• Cutting sheets of paper to required print size
• Providing leaflets and flyers with a professional finish
• Trimming booklets
• Finishing books up to 40mm deep
