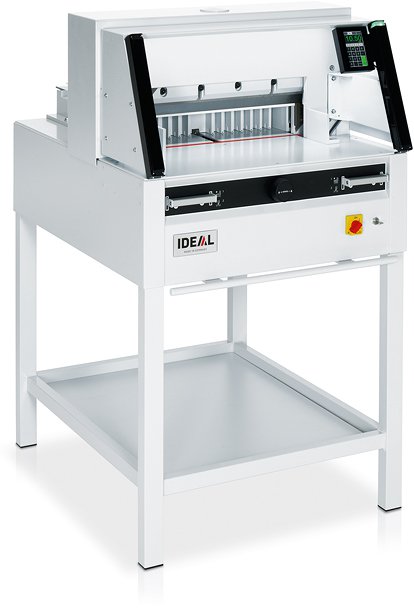

Ideal 4860

Professional guillotine with EASY-CUT, automatic clamp, programmable power backgauge with touch pad and IR light beam safety curtain on the front table.

Technical Data
Cutting length 475 mm
Cutting height 80 mm
Narrow cut 35 mm
Table depth 450 mm

Category:

Product Description

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: IR light beam safety curtain on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers. Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button.

Programmable EJECT function – for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Electro-mechanical blade and clamp drive. Sindle guided backgauge for precise positioning. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Adjustable backgauge with narrow separations and plastic gliders. Optical cutting line with bright and durable LEDs. Three-step front table illumination (LEDs). Two side lays each on front and rear tables. Solid all-metal construction. Complete with stand, storage shelf, practical tool holder and stacking angle. Optional set of side tables available at an extra cost.

Additional Information

Features

• IR Safety Curtain – First guillotine of this size from Ideal to have this feature
• 99 job programmable control, accurate to 0.1mm
• Memory key for repeat jobs
• Power back gauge
• Independent clamp movement
• Digital read out of cut measurements
• 450mm maximum cut length, 32mm minimum
• 80mm cutting height

Typical Uses

• Business cards
• Stationery
• Leaflets
• Flyers
• Labels
• Posters
• Delicate papers – Can be used with our magnetic foam clamp pads for soft impression
• Cutting sheets of paper to required print size
• Finishing books up to 80mm deep
