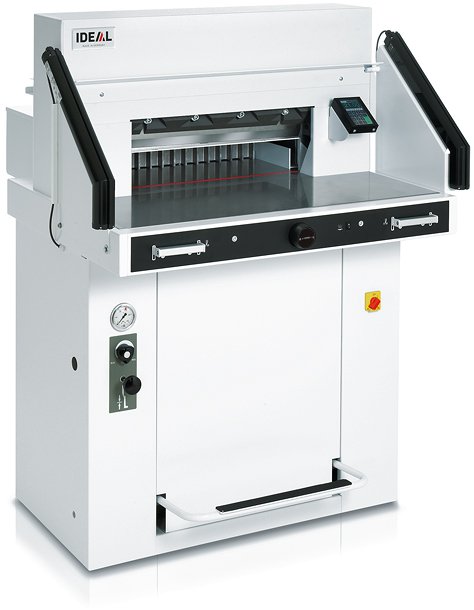

Ideal 5560LT

Professional guillotine with hydraulic blade and clamp drive, EASY-CUT, programmable power backgauge with touch pad and IR light beam safety curtain on the front table.

Technical Data
Cutting length 550 mm
Cutting height 95 / 92* mm
Narrow cut 32 / 60* mm
Table depth 570 mm
* with false clamp installed

Category:

Description

Hydraulic blade and clamp drive. Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. Comprehensive SCS safety package: IR light beam safety curtain on the front table; safety cover on the rear table; lockable main switch; electronically controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade and clamp return from every position; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs. Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button.

Programmable EJECT function – for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge. False clamp plate for delicate work. Solid front table made of die-cast aluminium with stainless steel worktops. Blade made of high quality HSS steel. Hydraulic swing cut for high cutting precision. Die-cast aluminium blade carrier and adjustable blade guides. Aluminium clamp bar. Adjustable blade depth. Sturdy cast iron machine frame. Movable on castors. Complete with practical tool holder and stacking angle. Optional set of side tables (left and right) available at an extra cost.

IDEAL 5560 LT with air table (air jets on front and rear table).

Additional information

Features

• Hydraulic clamps with infinitely adjustable pressure
• 99 job programmable control, accurate to 0.1mm
• Memory key for repeat jobs
• Power back gauge
• Independent clamp movement
• Digital read out of cut measurements
• 550mm maximum cut length, 32mm minimum
• 95mm cutting height
• Infra Red beam safety curtain
• Side tables for ease of loading/unloading

Typical Uses

• Business cards
• Stationery
• Leaflets
• Flyers
• Labels
• Posters
• Delicate papers
• Cutting sheets of paper to required print size
• Finishing books up to 95mm deep
