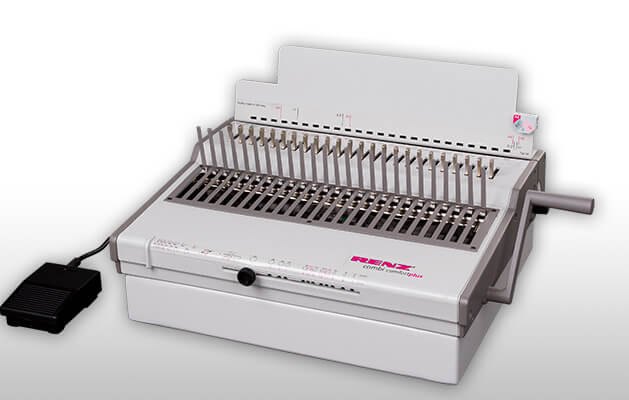

Renz COMBI COMFORTPLUS

Desktop plastic comb punching and binding machine. For all types of comb book production. Designed to produce documents of all sizes in low and medium volumes quickly and easily. This electric punching and manual binding machine is designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

NEW! Available in the first quarter of 2016 comfortplus stands for a considerably improved punching speed compared with our current comfort series. The higher speed is achieved using a new motor which is twice as powerful.

The new comfortplus machine replace the current models combi comfort and combi E.

  • Binds up to 480 sheets
  • Closure control guarantees easy comb closure
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or comb size
  • Heavy duty construction & compact design
Category: Tag:

Description

Specification

Punching capacity sheets per hr

16,000

Min. punching width

10 mm

Max. punching width

340 mm

Min. unpunched length

50 mm

Max. unpunched length

500 mm

Max. punching thickness

2.5 mm

Punching operation

Electric

Punch dies available

Oblong 8 x 3 mm

Pitch

US

Selectable punch pins (QSA)

Yes

Variable margin depth

Yes

Binding thickness

1 – 48 mm

Binding element Ø

6 – 52 mm

Min. binding width

10 mm

Max. binding width

340 mm

Binding operation

Manual

No. of books output per hr

250

Machine dimensions L x W x H

360 x 500 x 350 mm

Machine weight

23.5 kg

Machine packing dimensions L x W x H

600 x 600 x 340 mm

Machine weight with packing

26 kg

Power requirement

230/250 V/50 Hz/180 W
115/200 V/60 Hz/180 W
