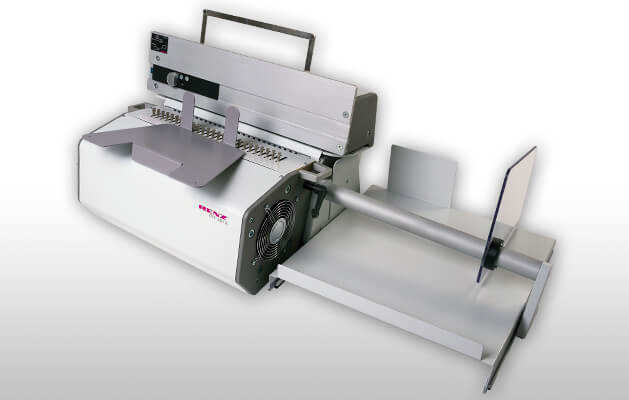

Renz DTP 340 A

Fast and reliable, heavy-duty, semi-automatic, desktop punching machine. Very versatile machine for all types of book and calendar punching production.

Punching dies for all types of ring wire, plastic comb, coil and calendars.
Punch a wide range of mixed stocks
Fast die changes
Fastest machine in its class with automatic paper ejection. Up to 3 times faster than a standard bench top machine
QSA (Quick Size Adjustment) for high flexibility of different paper formats⁽¹⁾
Vertical paper feeding for precise punching

Category: Binders Tags: Binders - Coil, Binders - Comb, Binders - Wire

Description

Description

Specification

Mechanical cycles per hour	1,200
Min. punching width	10 mm
Max. punching width	340 mm
Min. unpunched length	110 mm
Max. unpunched length	800 mm
Max. punching thickness	3.5 mm ⁽¹⁾
Punching operation	Sensor or foot pedal
Punch dies available	3:1, 2:1 ring wire, calendar, coil, plastic comb
Die type	Standard
Selectable punch pins (QSA)	Yes
Bespoke dies	No
Variable margin depth	Yes ⁽¹⁾
Die changeover time	2 min
Machine dimensions L x W x H	880 x 640 x 380 mm
Machine weight	53 kg ⁽²⁾
Machine packing dimensions L x W x H	1,080 x 600 x 500 mm
Machine weight with packing	89 kg ⁽²⁾
Power requirement	230/250V / 50Hz / 300W 115/200V / 60Hz / 300W
