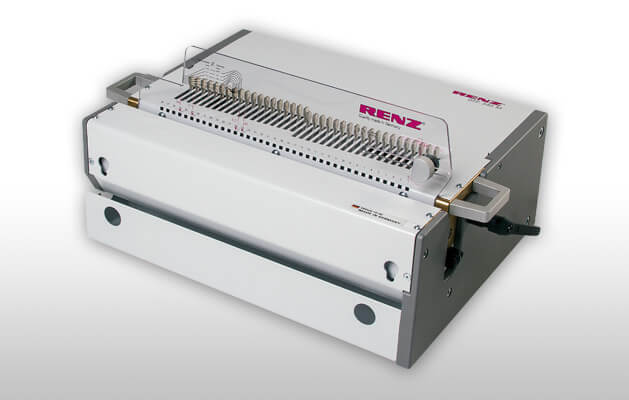

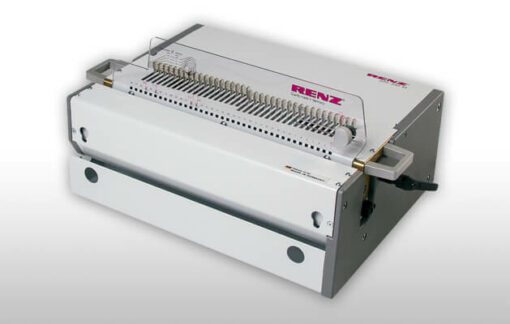

Renz DTP 340 M

Reliable, heavy-duty, desktop punching machine. The modular design makes it very versatile for all types of book and calendar production.

Punching dies for all types of ring wire, plastic comb, coil and calendars.
Punch a wide range of mixed stocks
Fast die changes
QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3⁽¹⁾
Vertical paper feeding for precise punching
Compact simple design, one machine can punch and bind all jobs when using Renz MBS binding modules

Category: Binders Tags: Binders - Coil, Binders - Comb, Binders - Wire

Description

Description

Specification

Mechanical cycles per hour	1,200
Min. punching width	10 mm
Max. punching width	340 mm
Min. unpunched length	40 mm
Max. unpunched length	800 mm
Max. punching thickness	3.5 mm ⁽¹⁾
Punching operation	Foot pedal
Punch dies available	3:1, 2:1 ring wire, calendar, coil, plastic comb
Die type	Standard
Selectable punch pins (QSA)	Yes
Bespoke dies	No
Variable margin depth	Yes ⁽¹⁾
Die changeover time	1 min
Machine dimensions L x W x H	360 x 490 x 250 mm
Machine weight	31 kg ⁽²⁾
Machine packing dimensions L x W x H	580 x 460 x 310 mm
Machine weight with packing	34.5 kg ⁽²⁾
Power requirement	230/250V / 50 Hz / 250W 115/200V / 60 Hz / 250W
