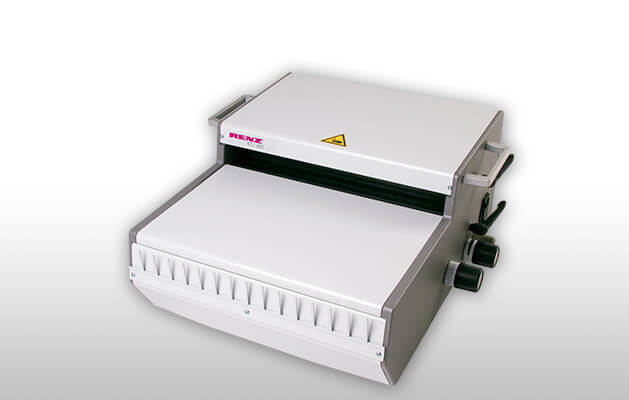

Renz ECL 360 (Electric closer)

Electric RENZ RING WIRE® closing machines, no effort required. A user-friendly solution to wire bind all your products quickly and easily, available in 360 mm.

  • Quick size adjustment for fast wire diameter set up
  • Integrated ring wire hanging device for comfortable working
  • Binds up to 340 sheets
  • Fast and consistent bind cycle from the first to the last document every time
  • Binds the largest diameter 1 1/2“ (38 mm) RENZ RING WIRE®
  • Automatic protection safety switch
  • Parallel adjustment guarantees a perfect bind every time
Category: Tag:

Description

Specification

Pitch

4:1, 3:1 & 2:1

Binding thickness

1 – 34 mm

Binding element Ø

6.9 – 38 mm
1/4″ – 1 1/2″

Min. binding width

10 mm

Max. binding width

360 mm

Min. unbound edge

65 mm

Max. unbound edge

600 mm

Binding operation

Electric

No. of books output per hr

400

No. of calendars output per hr

250

Time required for diameter change

20 s

Format change without diameter

Calendar hangers

Loose

Machine dimensions L x W x H

530 x 520 x 230 mm

Machine weight

38 kg

Machine packing dimensions L x W x H

630 x 600 x 340 mm

Machine weight with packing

42 kg

Power requirement

230/250V / 50Hz / 250W
115/200V / 60Hz / 250W
