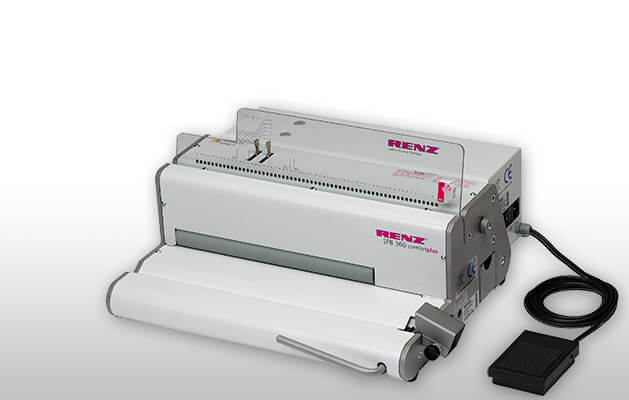

Renz SPB 360 COMFORTPLUS

Desktop spiral punching and inserting machine. Designed for low to medium volumes of PVC coil books production. This electric punching and electric inserting machine with manual crimping and cutting. Designed for regular use in a small to medium sized office.

NEW! Available in the first quarter of 2016 comfortplus stands for a considerably improved punching speed compared with our current comfort series. The higher speed is achieved using a new motor which is twice as powerful. The new comfortplus machine replace the current model SPB 360 comfort.

  • Binds up to 160 sheets
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5 and A4
  • Adjustable side lay for perfect punching registration
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • Easy to empty sliding waste tray
  • Unique electric roller for quick coil insertion
  • Clever crimper and cutter for turning coil ends
  • Measures the document or coil size
  • Heavy duty construction & compact design
Category: Tag:

Description

Specification

Punching capacity sheets per hr

11,000

Min. punching width

10 mm

Max. punching width

360 mm

Min. unpunched length

50 mm

Max. unpunched length

500 mm

Max. punching thickness

2.0 mm

Punching operation

Electric

Punch dies available

Oval 5.0 x 4.0 mm

Pitch

0.2475”

Selectable punch pins (QSA)

Yes

Variable margin depth

No

Binding thickness

1 – 16 mm

Binding element Ø

6 – 20 mm

Min. binding width

10 mm

Max. binding width

360 mm

Binding operation

Electric insert, manual crimp and cut

No. of books output per hr

100

Machine dimensions L x W x H

440 x 490 x 250 mm

Machine weight

32 kg

Machine packing dimensions L x W x H

630 x 600 x 340 mm

Machine weight with packing

36 kg

Power requirement

230/250 V / 50 Hz / 180W
115/200 V / 60 Hz / 180W
