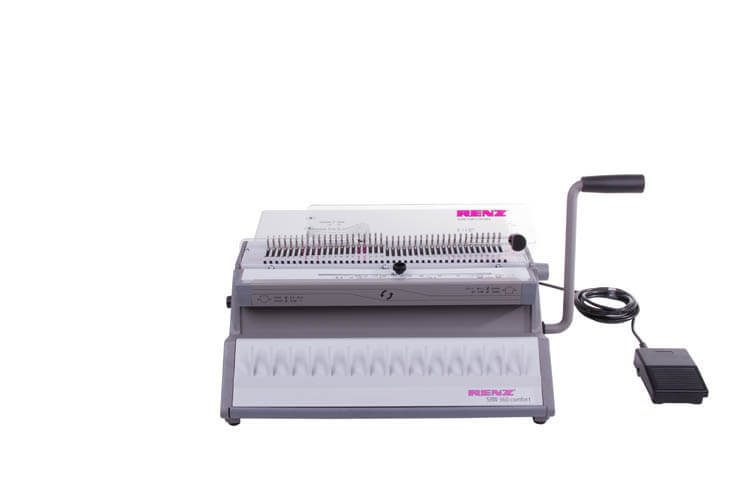

renz SRW 360 COMFORT

This Model is also available in 2.1 Pitch.

3:1 pitch electric punching and manual binding machine designed for regular use in a small to medium sized office. It takes the manual labour out of punching.

  • Binds up to 135 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or ring wire size
  • Heavy duty construction & compact design
Category: Tag:

Description

Specification

Punching capacity sheets per hr

14,000

Min. punching width

10 mm

Max. punching width

360 mm

Min. unpunched length

50 mm

Max. unpunched length

500 mm

Max. punching thickness

2.2 mm

Punching operation

Electric

Punch dies available

Square 4 x 4 mm

Pitch

3:1

Selectable punch pins (QSA)

Yes

Variable margin depth

Yes

Binding thickness

1 – 13.5 mm

Binding element Ø

5.5 – 16 mm
3/16″ – 5/8″

Min. binding width

10 mm

Max. binding width

360 mm

Binding operation

Manual

No. of books output per hr

220

No. of calendars output per hr

180

Machine dimensions L x W x H

430 x 560 x 180 mm

Machine weight

26 kg

Machine packing dimensions L x W x H

630 x 600 x 340 mm

Machine weight with packing

28.5 kg

Power requirement

230/250V / 50Hz / 90W
115/200V / 60Hz / 90W
