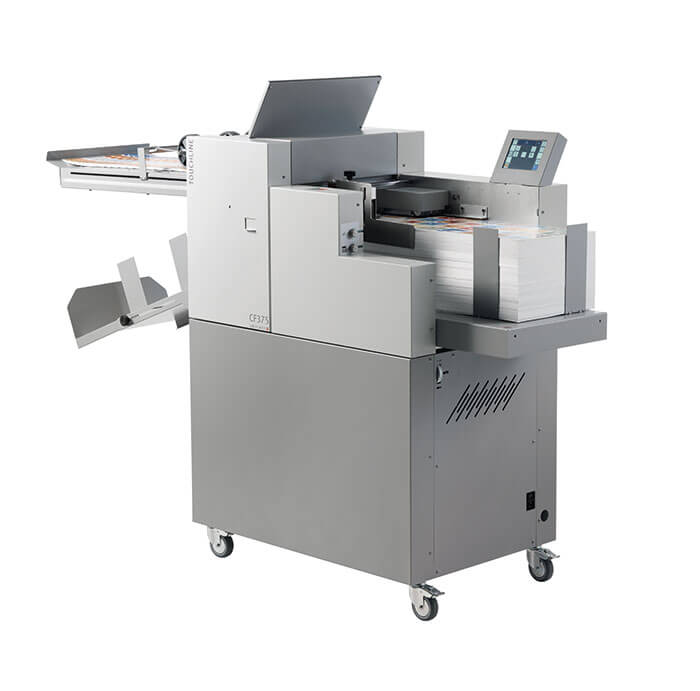

EUROFOLD Touchline CF375 Folder Creaser

The TOUCHLINE generation offers more flexibility and automation than any other product in its class. The creaser/folder Eurofold TOUCHLINE CF375 handles paper stocks up to 400 gsm, creases and folds the products, all in one single pass.

It employs the unique Multigraf SwingBar System for creasing without cracking. The sheets don’t stop during the creasing process. The automated setup of the crease depth with different positions is another fantastic feature of the Eurofold TOUCHLINE CF375. This new technology allows for the speeding up of the creasing process with an accuracy of 0.1 mm.

By using this technology, the Eurofold TOUCHLINE CF375 runs at a consistent speed of more than 5000 A4 sheets per hour, regardless of the number of creases and folds applied.

Play Product Video

Category:

Description

Technical Data

  • Feed capacity: 100mm
  • Paper Size Min: 105 x 148mm
  • Paper Size Max: 375 x 650mm
  • Paper weight: 100-400gsm
  • Crease system: Multigraf Swing-Bar
  • Fold system: Multigraf Pro-Knife
  • Crease depths: 3
  • Crease styles: 2 (standard & narrow)
  • No of folds: 2

Optional Extras

  • Perforating & Slitting device

Features

  • Top-fed vacuum-belt pile-feeder
  • Multigraf Swing-Bar creasing system
  • Touch-screen control
  • Three configurations: creaser-folder / folder / perforator
  • Shingle delivery

Typical Uses

  • Greetings cards
  • Leaflets and menus
  • Brochures
  • Point of sale advertising
