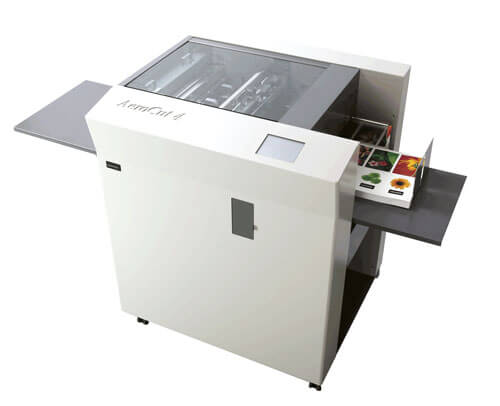

Uchida Aerocut Quatro – SRA3 Cutter Creaser

The Best Multi-Function Finishing Machine, Ever. New finishing solution on both digital and offset field is offered by the UCHIDA AeroCut Quatro Auto Cutter and Creaser.

Cut, Crease, Score, Perforate in seconds to a new level of accuracy

Professional card cutter and creaser. AeroCut offers cut and crease finishing for any size up to a maximum SRA3+

All jobs, cutting, creasing and perforating are operated with touch screen. This enables time saving, no complicate setting and specific acknowledgement required. Japanese high quality cutter, slitter and creaser can fulfil finishing result for all kinds of cards.

Play Product Video

Category:

Description

Specifications

Types

Standalone type

In-feed system

Upper belt suction feed

Processing speed

Business card (21 pcs from A3 sheet) – 6 sheets/minute
Leaflets (center crease) – 8 sheets/minute
Card (A5 x 4 from SRA3) – 7 sheets/minute

Cutting (Length)

Guillotine (Angle to feed direction)

Cutting (Width)

Slitter Roller (Along to feed direction)

Auto paper size detection

350mm (W) x 500mm (L), SRA3, A3, A4 and A5

Position setting

Fully automatic

Maximum paper size

365mm (W) x 520mm (L)

Minimum paper size

210mm (W) x 210mm (L)

Maximum paper weight

350g/m2

Minimum paper weight

120g/m2

Paper type

Offset, Coated, Glossy, UV coated, Laminated paper etc.

Maximum Loading capacity

60mm

Feed out

Receiving tray

Minimum cut size

55mm (W) x 50mm (L)

Maximum cut size

210mm x 297mm (A4 x 2 sheets)

Pre-programmed job pattern

78 kinds

Memory capacity

Up to 50 kinds

Perforating unit

Equipped as standard (two blades standard)

Creasing unit

Equipped as standard

Net weight

150 kg

Dimensions

Unit : 877mm (W) x 714mm (D) x 1,037mm (H)
In use : 1,720mm (W) x 714mm (D) x 1,500mm (H)

Power supply

100 VAC – 240VAC / 50-60Hz

Additional information

Features

• 6 Rotary Slitting Knives
• Cross Cut Knife
• Matrix Creasing with adjustable depth
• Perforation unit with twin perf wheels
• Reg mark reader to eliminate print wandering
• Program memory for 80 jobs
• Feeds over 350gsm
