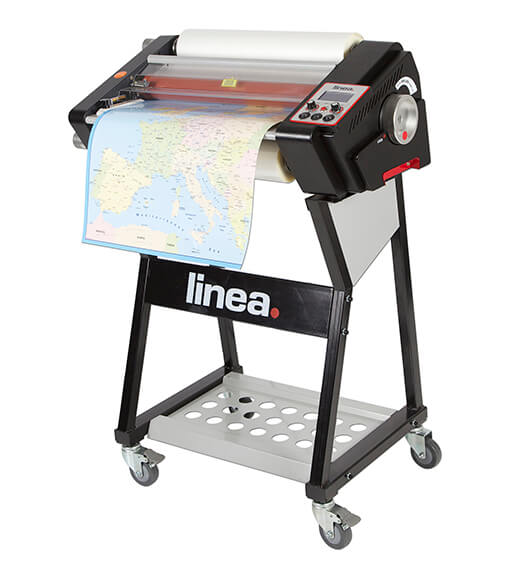

Linea DH-460

The Linea DH-460 is a continuous roll fed system that allows non-stop lamination for demanding jobs. The Linea DH-460 has been designed for jobs that just can’t wait. As well as being able to cope with long, continuous runs, its highly versatile and ideal for laminating different size media such as long banners or odd shaped pieces.



Play Product Video

Category: Tag:

Description

Key Features
• Can be used as a desktop or free standing system
• Solidly built from all-metal components
• Large diameter rollers to withstand the rigours of continuous operation
• Available in 4 sizes from A3 – A0 / 11×17″ – 34×44″

Great for use in
• In house print
• Schools
• Colleges & Universities

Ideally suited for
• Posters
• Teaching aids
• Banners
• Notices/signage
• Photos

Additional information

Spec

Encapsulating Speed (mm/min / inches/min) – 1400 / 55
Max. Encapsulating Width (mm / inches) – 460 / 18
Mounting Thickness (mm / inches) – 5 / 0.2"
Warm-up Time (mins) – 10
Laminating Temperature Range (°C/°F) – 0-140 / 32-284
Film Core (mm / inches) – 25 / 1
Power Supply AC (v, 50Hz) – 220/240
Power Supply AC (v, 60Hz) – 110
Power Supply Required (Amps) –
Power Consumption (W) – 940
Overall Dimensions – Width (mm / inches) – 760 / 30
Overall Dimensions – Depth x Height (mm / inches) – 420×310 / 17×12
Gross Machine Weight (Kg / lbs) – 45 / 99
