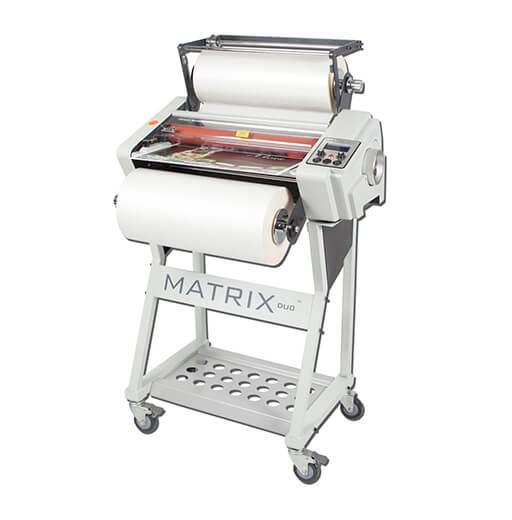

Matrix Duo MD-460

Matrix Duo is a multipurpose single/double sided roll fed system ideal for both laminating and encapsulating. The Matrix Duo is an innovative laminating system designed for laminating and encapsulating. The Matrix Duo gives the flexibility of single side lamination, encapsulation and even double side lamination, providing an affordable and effective solution, compared to outsourcing.



Play Product Video

Category: Tag:

Description

Key Features
• 1.4m/5ft a minute
• 77mm/3” & 25mm/1” core
• adjustable anti-curl bar
• single sided lamination
• encapsulation
• double sided lamination

Great for use in
• digital printers
• in-house print rooms
• copy and print shops

Ideally suited for
• business cards
• menus
• brochures
• posters & prints
• book covers

Additional information

Spec

Laminating Speed (m/min / feet/min) – 1.4 / 5
Max. Width (mm / inches) – 460 / 18
Warm-up Time (mins) – 10
Laminating Temperature Range (°C/°F) – 0-140 / 32-284
Film Core (mm / inches) – 25 & 75 / 1 & 3
Power Supply AC (v, 50Hz) -220/240
Power Supply AC (v, 60Hz) – 110
Power Supply Required (Amps) –
Power Consumption (W) – 950
Overall Dimensions – Width (mm / inches) – 720 / 28
Overall Dimensions – Depth x Height (mm / inches) – 480×400 / 19×16
Gross Machine Weight (Kg / lbs) – 45 / 99
