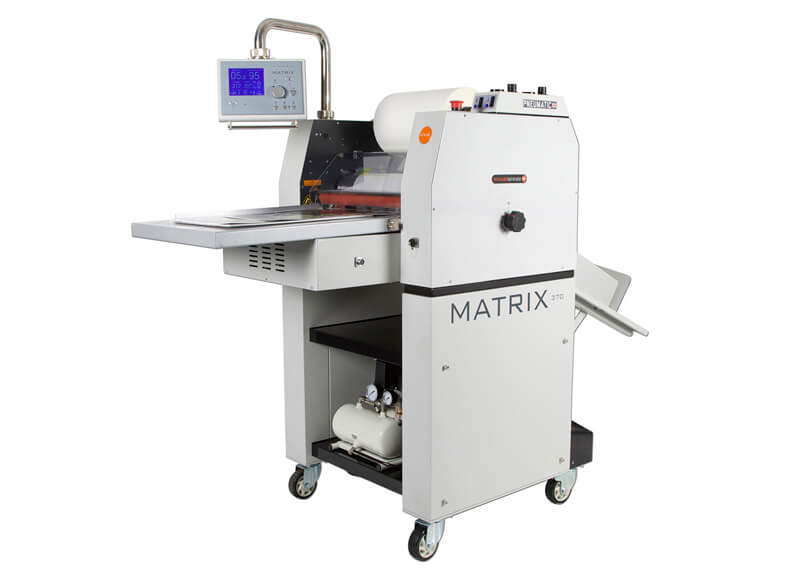

Matrix MX-370P

Matrix Pneumatic delivers even faster production times than our standard systems.

The Matrix Pneumatic can run up to twice the speed of our standard systems. Printers can laminate work even faster to get the job finished and back to the customer.

Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost.

The Pneumatic option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the systems, including Omron switches and Schneider electrics.



Play Product Video

Category: Tag:

Product Description

Key Features

  • Pneumatic pressure
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic seperator

Great for use in

  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for

  • Business cards
  • Menus
  • Book covers
  • Brochures
  • Flyers

Additional Information

Specifications

Max. Laminating Speed (m/min / feet/min)
10 / 33
Max. Laminating Film Width (mm / inches)
340 / 13
Paper Thickness (gsm / lbs)
135+ / 90
Warm-up Time (mins)
10
Laminating Temperature Range (°C/°F)
0-140 / 32-284
Control Panel
Multilingual LCD
Pressure Adjustment
Pneumatic
Film Core (mm / inches)
77 / 3
Power Supply AC (v, 50Hz)
220/240
Power Supply AC (v, 60Hz)
240
Power Supply Required (Amps)

Power Consumption (W)
2200
Overall Dimensions – Width (mm / inches)
800 / 31
Overall Dimensions – Depth x Height (mm / inches)
1800×1400 / 71×55
Gross Machine Weight (Kg / lbs)
210 / 463
