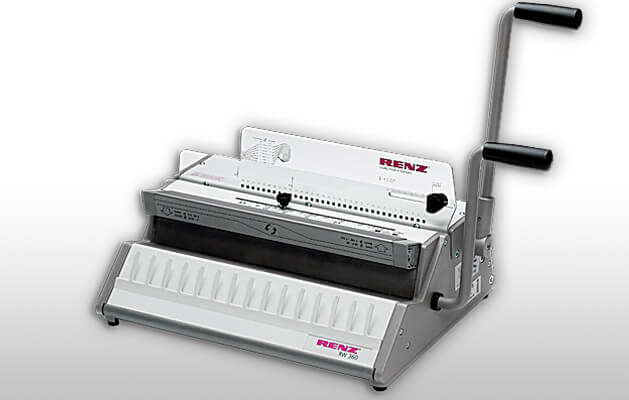

Renz SRW 360

3:1 pitch manual punching and binding machine designed for regular use in a small to medium sized office.

Binds up to 135 sheets
Closure control guarantees easy ring wire closure for perfect presentations every time
Gauge to alter margin for a stronger bind
Special hardened punch pins for long lasting life
Staggered punching pins for better punching
QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
Adjustable side lay for perfect punching registration
Easy to empty sliding waste tray
Measures the document or ring wire size
Parallel adjustment guarantees a perfect bind every time
Heavy duty construction & compact design

This Model is also available in 2.1 Pitch.

Description

Specification

Punching capacity sheets per hr	12,000
Min. punching width	10 mm
Max. punching width	360 mm
Min. unpunched length	50 mm
Max. unpunched length	500 mm
Max. punching thickness	2.2 mm
Punching operation	Manual
Punch dies available	Square 4 x 4 mm
Pitch	3:1
Selectable punch pins (QSA)	Yes
Variable margin depth	Yes
Binding thickness	1 – 13.5 mm
Binding element Ø	5.5 – 16 mm 3/16″ – 5/8″
Min. binding width	10 mm
Max. binding width	360 mm
Binding operation	Manual
No. of books output per hr	200
No. of calendars output per hr	160
Machine dimensions L x W x H	330 x 560 x 180 mm
Machine weight	13 kg
Machine packing dimensions L x W x H	640 x 480 x 280 mm
Machine weight with packing	15.5 kg
