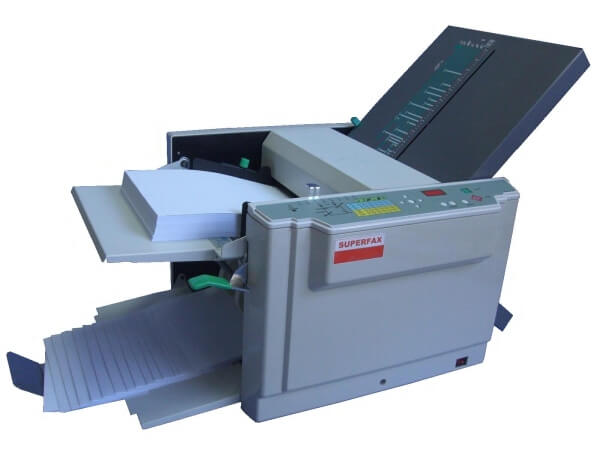

SUPERFAX PF380 AUTOSET A3 FOLDING MACHINE

Product Description

Well Finished’s entry Level Machine… is an A3 folder with fully automatic set-up of fold tables including micro adjustment. 500 sheet capacity feed tray with skew adjustment & auto stop when empty. 7200 folds per hour, Paper stock from A5-A3 & 45-135 gsm plus feed pressure and separator pad adjustment.

Average daily volume 7000 sheets.

Features

  • Automatic Settings – Six different folding types are programmed
  • Smooth and perfect paper feeding with twin roller system.
  • Irregular and special sizes can be folded by manual set-up.
  • Equipped with 4-digit addition counter.
  • Diagnostic Display for visual observation to detect nature and the whereabouts of errors.
  • 5 different folding speeds, slant correction device and miss-operation protection system.
  • Equipped with conveyer belt output.

Category:

Description

Specifications

  • Max Paper Size 297mm x 420 mm
  • Min Paper Size 128mm x 182 mm
  • Paper Weight 45 – 145 GSM
  • Fold Types A3, A4, A5, Letter, Legal and Ledger Sizes
  • Feed Table Capacity 400 sheets of 80 GSM
  • Folding Speed 2400 – 7200 sheets per hour (A4 single fold)
  • Counter
  • Jam Map
  • Jam Sensor
  • Paper Empty Detection
  • Paper Eject Sensor
  • Weight 32 KG
  • Power Source 220/240VAC 50 or 60 Hz
