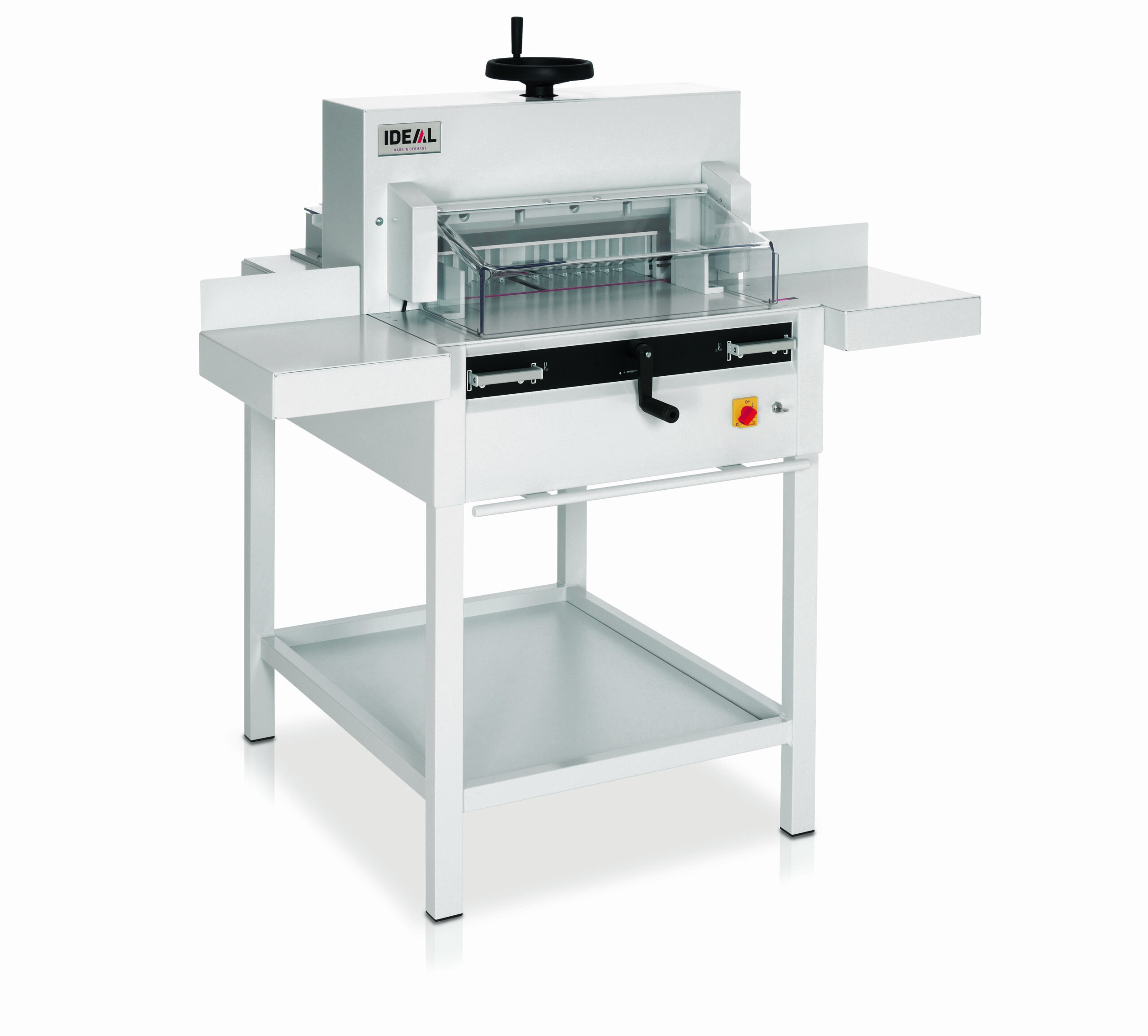

Ideal 4815

Powerful guillotine with electro-mechanical blade drive, manual spindle clamp and EASY-CUT.

Technical Data
Cutting length 475 mm
Cutting height 80 mm
Narrow cut 30 mm
Table depth 458 mm

Category:

Product Description

Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Electromechanical blade drive. Spindle guided backgauge with hand crank. Digital measurement readout for backgauge positioning (cm or inches) on front table. Optical cutting line with bright and durable LEDs.

Adjustable backgauge with narrow separations and plastic gliders. Manual spindle clamp, guided on both sides, with large hand wheel. Two side lays each on front and rear tables. Blade made of German high quality steel. Solid steel blade carrier and adjustable blade guides. Solid all-metal construction. Complete with stand, storage shelf, practical tool holder and stacking angle. Optional set of side tables available at an extra cost.

Additional Information

Features

• Front table operation with Digital Measurement Readout on Front Table
• Electo-mechanical blade drive
• Transparent front hood
• Blade depth adjustment from outside machine
• 475mm maximum cutting length, 30mm minimum
• 80mm maximum cutting height
• Front side lays for exact position of pile
• Complete with stand

Typical Uses

• Cutting sheets of paper to required print size
• Provides print with professional finish
• Trimming booklets
• Business cards
• Stationery
• Leaflets
• Flyers
• Finishing books up to 80mm deep
