mx_530

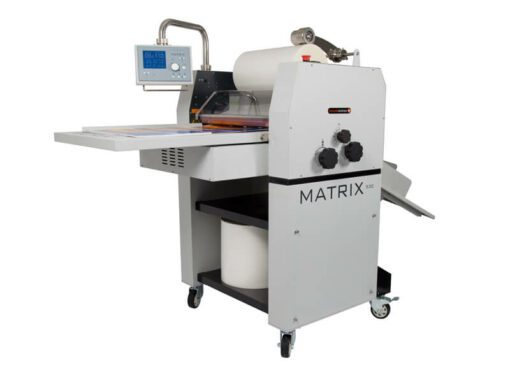

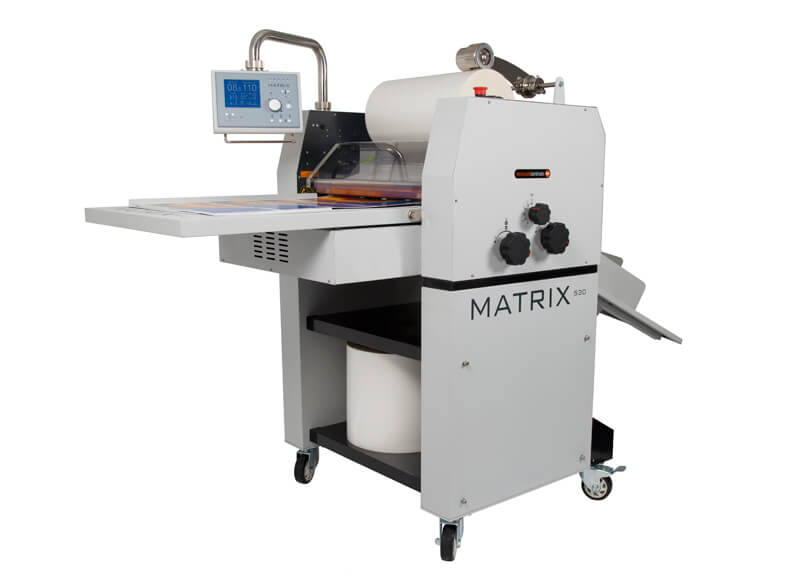

Matrix MX-530

Matrix does the entire job from start to gloss or matt finish.

The Matrix is designed in-house by Vivid to help breathe life into your business by allowing you to provide your customers with a service you previously had to outsource.

The best value single-sided laminator on the market, is simple to use, easy to maintain, quick and reliable.



Play Product Video

Category: Tag:

Product Description

Key Features
• An easy-to-use fingertip control panel
• Anti-curl technology ensures that whatever you laminate – comes out smooth and flat.
• Semi-automatic feed with auto-overlap
• Automatic separator

Great for use in
• Commercial printers
• Digital printers
• Copy and print shops

Ideally suited for
• Business cards
• Menus
• Book covers
• Brochures
• Flyers

Additional Information

Specifications

Max. Laminating Speed (m/min / feet/min)
10 / 33
Max. Paper Size (mm / inches)
550 / 22
Max. Laminating Film Width (mm / inches)
510 / 20
Paper Thickness (gsm / lbs)
135+ / 90
Warm-up Time (mins)
10
Laminating Temperature Range (°C/°F)
0-140 / 32-284
Control Panel
Multilingual LCD
Film Core (mm / inches)
77 / 3
Power Supply AC (v, 50Hz)
220/240
Power Supply AC (v, 60Hz)
240
Power Supply Required (Amps)

Power Consumption (W)
2400
Overall Dimensions – Width (mm / inches)
900 / 35
Overall Dimensions – Depth x Height (mm / inches)
2050×1400 / 81×55
Gross Machine Weight (Kg / lbs)
220 / 485
