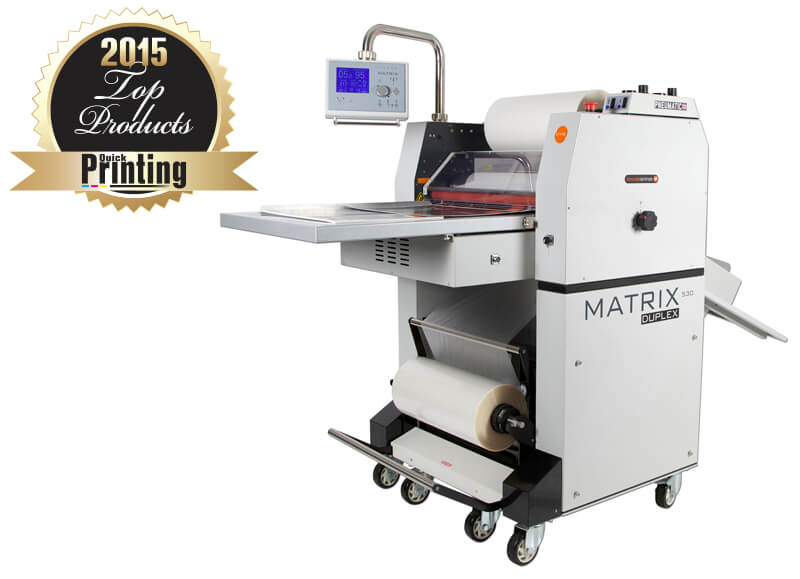

Matrix MX-530DP

The award-winning Matrix MX-530 Duplex will halve your production time, laminating both sides of the sheet at the same time.

Winner of Quick Printing Readers’ Choice Top Products Awards, the Matrix Duplex is an incredibly cost-effective system that allows printers to laminate single-side, double-side and encapsulate their work, in-house.

It will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes.
The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.



Play Product Video

Category: Tag:

Product Description

Key Features
• Pneumatic pressure
• Laminate both sides at the same time
• Easy-to-use control panel
• Anti-curl technology
• Semi-automatic feed
• Automatic separator
separator

Great for use in
• Commercial printers
• Digital printers
• Copy and print shops

Ideally suited for
• Business cards
• Menus
• Book covers
• Brochures
• Flyers

Additional Information

Specs

Encapsulating Speed (mm/min / inches/min)
1000 / 39
Max. Laminating Speed (m/min / feet/min)
10 / 33
Max. Encapsulating Width (mm / inches)
320 / 13
Max. Laminating Film Width (mm / inches)
500 / 20
Paper Thickness (gsm / lbs)
135+ / 90
Warm-up Time (mins)
10
Laminating Temperature Range (°C/°F)
0-140 / 32-284
Control Panel
Multilingual LCD
Pressure Adjustment
Pneumatic
Film Core (mm / inches)
77 / 3
Power Supply AC (v, 50Hz)
220/240
Power Supply AC (v, 60Hz)
240
Power Supply Required (Amps)

Power Consumption (W)
4500
Overall Dimensions – Width (mm / inches)
900 / 35
Overall Dimensions – Depth x Height (mm / inches)
2050×1400 / 81×55
Gross Machine Weight (Kg / lbs)
250 / 551
