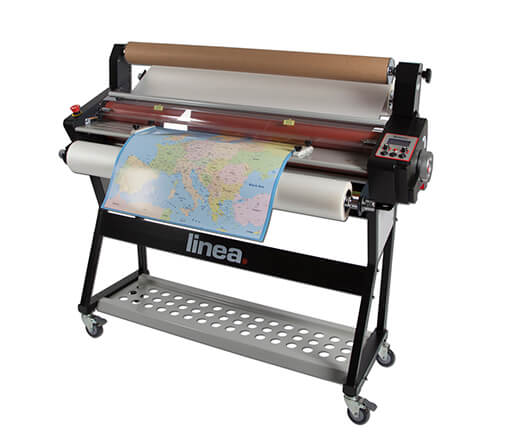

Linea DH-1100

The Linea DH-1100 is a continuous roll fed system that allows non-stop lamination for demanding jobs. The Linea DH-1100 has been designed for jobs that just can’t wait. As well as being able to cope with long, continuous runs, its highly versatile and ideal for laminating different size media such as long banners or odd shaped pieces.



Play Product Video

Category: Tag:

Description

Key Features
• Solidly built from all-metal components
• Large diameter rollers to withstand the rigours of continuous operation
• Available in 4 sizes from A3 – A0 / 11×17″ – 34×44″

Great for use in
• In house print
• Schools
• Colleges & Universities

Ideally suited for
• Posters
• Teaching aids
• Banners
• Notices/signage
• Photos

Additional information

Spec

Encapsulating Speed (mm/min / inches/min) – 1600 / 63
Max. Width (mm / inches) – 1080 / 43
Max. Encapsulating Width (mm / inches) – 1080 / 43
Mounting Thickness (mm / inches) – 5 / 0.2"
Warm-up Time (mins) – 15
Laminating Temperature Range (°C/°F) – 0-140 / 32-284
Film Core (mm / inches) – 57 & 77 / 2 & 3
Power Supply AC (v, 50Hz) – 220/240
Power Supply AC (v, 60Hz) – 240
Power Supply Required (Amps) –
Power Consumption (W) – 2700
Overall Dimensions – Width (mm / inches) – 1370 / 54
Overall Dimensions – Depth x Height (mm / inches) – 420×310 / 17×12
Gross Machine Weight (Kg / lbs) -200 / 441
